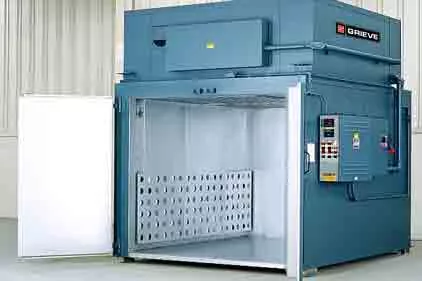

No. 806 is a 500 ºF (260 ºC), electrically heated walk-in oven from Grieve Corp. that is currently used for paint baking operations. Workspace dimensions of this oven measure 72” W x 96” D x 78” H. 100 kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 10,000 CFM, 7-1/2-HP recirculating blower provides combination airflow to the workload.

The oven features 4” insulated walls, aluminized steel exterior and interior, removable top-mounted heating chamber and a fully insulated floor. It is built with all safety equipment required by NFPA Standard 86 for flammable solvents, including a powered forced exhauster, airflow safety switch and purge timer.

Other controls on No. 806 include a fused disconnect switch, digital temperature controller and manual reset excess temperature controller.
