“If the nano staples make even extreme polymers like Teflon and silicone stick to each other, they can join all kinds of other plastic materials,” said Professor Rainer Adelung. Adelung is leading the functional nano materials group at the Institute of Materials Science in Kiel and lead the research project from the materials science side. The new technology of joining materials without chemical modifications can be used, according to Adelung, in a variety of everyday life and high tech applications. The technique is easy to use and does not need expensive equipment or material.

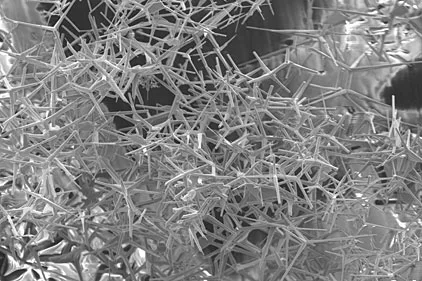

The linkers are micro and nano scaled crystals made of zinc oxide. They are shaped like tetrapods, where four legs protrude from the point of origin. Large-scale tetrapods are known for their ability to interlock and form strong bonds, for example in coastal protection.
During the joining process, the zinc oxide crystals are sprinkled evenly onto a heated layer of Teflon. Then, a layer of silicone is poured on top. In order to join the materials firmly, they are then heated to 100 °C for less than an hour. “It’s like stapling two non-sticky materials from the inside with the crystals: When they are heated up, the nano tetrapods in between the polymer layers pierce the materials, sink into them, and get anchored,” explained Xin Jin, the first author of the publication. Her colleague and supervisor, Dr. Yogendra Kumar Mishra, explains the adhesive principle: “If you try to pull out a tetrapod on one arm from a polymer layer, the shape of the tetrapod will simply cause three arms to dig in deeper and to hold on even firmer.”
In high technology businesses such as medical engineering, there is a strong demand for innovative ways to make polymers, particularly silicone, stick to other materials, for example to further develop breathing masks, implants or sensors. Medical applications require materials that are absolutely non-harmful, i.e. biocompatible. Many joining methods involve chemical reactions, which may change the polymers’ properties and can cause injurious or even toxic effects on organisms. The tetrapod stapling, on the contrary, is a purely mechanical process. Therefore the Kiel team assumes it to be biocompatible.
With the tetrapod staples, the scientists have achieved a stickiness – the so-called peel strength – of 200 Newtons per meter, which is similar to peeling sticky tape off glass. “The stickiness we have achieved with the nano tetrapods is remarkable, because as far as we could verify, no one has ever made silicone and Teflon stick to each other at all”, says co-author Lars Heepe, PhD student from the Zoological Institute of Kiel University, who precisely measured the adhesion and described what the stapled material looks like on the microscopic scale. “Measuring adhesion quantitatively is not as easy as it looks, precise experiments have to be carried out in order to prove the function of the linkers and rule out all errors,” said Professor Stanislav Gorb, leading the group Functional Morphology and Biomechanics.
Three research groups from different backgrounds combined their expertise in material science, chemistry and biomechanics in this study within the Collaborative Research Center 677 “Function by Switching” (CRC 677). The scientists’ local business partner nanoproofed GmbH is currently developing a product for paintings on top of silicone. In the framework of CRC 677, the staples are the basis for developing biomimetic adhesives, for which adhesion can be switched on and off by light of different colors.
Original publication: X. Jin, J. Strueben, L. Heepe, A. Kovalev, Y.K. Mishra, R. Adelung, S.N. Gorb, A. Staubitz (2012): Joining the un-joinable: Adhesion between low surface energy polymers using tetrapodal ZnO linkers. Advances Materials, DOI: 10.1002/adma201201780
