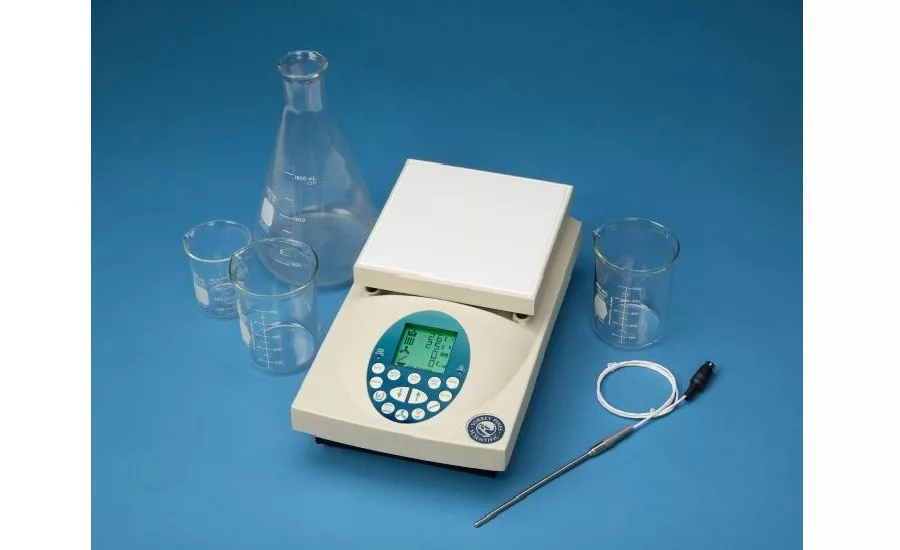

Torrey Pines Scientific, Inc. offers its new EchoTherm™ Programmable Digital Stirring Hot Plate for use in chemical, pharmaceutical, environmental, biochemical, and other laboratories. With the EchoTherm™ Model HS40, programming is done through the front panel membrane switch and full-functioned custom liquid crystal display. The unit can store 10 programs in memory of as many as 10 steps each where each step is a temperature, temperature ramp rate, stirring speed, and time. Each program can be made to repeat itself automatically from one to 98 times – or infinitely if wanted. All programs are stored electronically.

Heater plates are 8" (20.3 cm) x 8" (20.3 cm) white, solid ceramic glass for excellent chemical resistance and quick heating. The plate surface can be heated from ambient to 450 °C in less than three minutes. Plate surface temperature or solution temperature can be controlled directly to 1 °C of the target. Accuracy is 1% of the reading using platinum RTD circuitry. The units are supplied with temperature calibration certificates traceable to NIST.

Stirring speed is 100 to 1500 rpm and controlled by an optical coupler to 10 rpm. Count down timer with alarm and user settable Auto-Off and RS232 I/O port are standard. Various sample probes are available as accessories. The Model HS40 is available in 100, 115, and 230 VAC, 50/60 Hz models. All units are UL, CSA, and CE certified.

For more information, visit: https://torreypinesscientific.com/.
