Nosocomial infections and the emergence of antibiotic-resistant strains pose significant clinical and economic challenges.1,2 While good hygiene practices are the bedrock for infection control, emerging evidence suggests that continuously killing antimicrobial surfaces based on metallic copper can reduce bioburden and lower the risk of infection.3 Copper’s multiple mechanisms of action, which includes the ability to destroy genomic and plasmid DNA,4 explain its longstanding antimicrobial efficacy against pathogens such as antibiotic-resistant “superbugs”.5,6 Proposed mechanisms for copper-mediated cellular damage and toxicity include direct cell membrane damage, the generation of reactive hydroxyl radicals through Fenton-type reactions, and entry of copper ions into cells through ligand interactions, causing disruption of RNA and DNA function.5-7 While the precise mechanism is unclear, Cu1+ ions are considerably more toxic to bacteria than Cu2+ ions under test conditions that mimic microbial contamination on solid surfaces.8-10
There has been a significant focus on metallic copper as an antimicrobial since the U.S. EPA introduced a new test protocol in 2008 that was exclusively passed by copper surfaces.11,12 The U.S. EPA mandated that claims of efficacy against human pathogens could only be obtained for products that pass the standard with the justification that it was a realistic simulation of contamination unlike the traditional test.6,13 We wanted to make a copper-containing additive compatible with commonly used surfaces and coatings that demonstrated the efficacy to kill ≥99.9% of bacteria under EPA’s test conditions retaining copper’s broad spectrum efficacy and low probability for the development of resistant strains.5,14

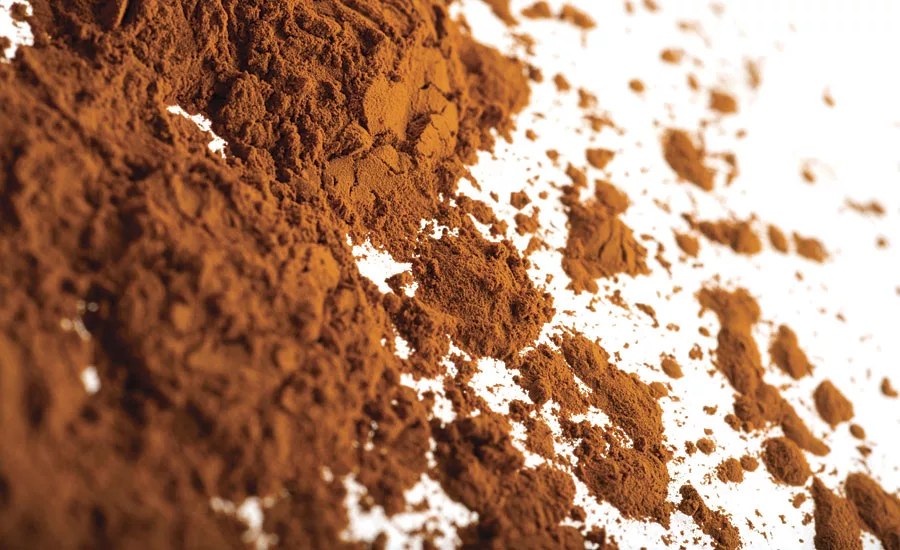

We describe an alkali copper aluminoborophosphosilicate glass ceramic material that acts as a sustainable delivery system for Cu+1 ions with high antimicrobial efficacy. We use coatings as a first-case demonstrative application due to their ubiquity. Coatings containing the copper-glass ceramic powder exhibit ≥99.9% reduction in S. aureus, P. aeruginosa, K. aerogenes, and E. coli colony counts using the U.S. EPA test method. The copper-glass ceramic is advantaged over existing organic antimicrobial paint additives owing to a favorable toxicological profile and copper’s broad-spectrum efficacy. Unlike air and moisture-sensitive cuprous compounds, the copper-glass ceramic is environmentally stable and disperses easily in water. Our work showcases an effective and versatile antimicrobial additive with potential application in coatings and plastics. It also demonstrates rational glass design as an approach for the practical synthesis of functional nanomaterials.
Results and Discussion
Copper-Glass and Copper-Glass Ceramic Compositions
We investigated copper-containing glasses because we hypothesized that the excellent barrier properties of glass to gaseous oxygen15,16 would stabilize the environmentally labile Cu1+ ions. Copper in aluminosilicate glasses has been described and demonstrated to contain >70% of copper in the Cu1+ state.17,18 Since monovalent ions within glasses can be extracted via an ion exchange process with H3O+ ions,19,20 this system was a promising starting point for the design of antimicrobial glasses. The initial composition that was melted was batched as 60SiO2-20Al2O3-20CuO (see “Methods” section). The analyzed composition for this glass (Sample A) is provided in Table 1. Our copper redox analysis using inductively coupled plasma-optical emission spectroscopy (ICP-OES) for total copper and Cr/Cu redox reaction for total Cu1+ indicated that the ratio of Cu1+ to total copper was 0.86 for the copper-glass. Unlike previous experiments aimed at reducing copper,21 the melting was not performed under a reducing atmosphere or with batched reducing agents. The reduction of copper from Cu2+ in the batched material to Cu1+ in the final glass was attributed to the high melting temperature and the nominally reducing conditions attributed to the glass composition. Glass compositions rich in high field strength cations such as Si4+ and B3+ have a strong reducing effect on multivalent ions incorporated into the glass melt.22 Unfortunately, the glass, when milled into a powder and mixed into paint, did not show the desired antimicrobial potency. We hypothesized that the small ionic size of Cu1+ (r = 0.60 Å)23 would limit the ion exchange reaction with larger H3O+ (r = 1.4 Å)24 as the extraction mechanism. When a glass is cooled from the molten state, the oxygen packing density of the glass network is increased as ionic field strength of modifier ions such as Cu1+ increases, resulting in smaller interstitial spaces surrounding the modifiers. Since inter-diffusion of charged species requires charge neutrality,25 the H3O+/R1+ (R = Li, Na, K, Cu, etc.) ion exchange is effectively stopped if the larger ion cannot enter the site that forms around the smaller, higher field strength ion. Figure 1 shows structures of two model glasses with compositions of 60SiO2-20Al2O3-20Cu2O and 60SiO2-20Al2O3-20K2O obtained through molecular dynamics simulations (see “Methods” section). The structures demonstrate the steric constraints that limit ion exchange between H3O+ ions with Cu1+ but not with K+ (r =1.4 Å),24 consistent with experimental observation.26 Thus, while the initial ternary glass contained significant amounts of Cu1+ ions, there was no mechanism to effectively extract these ions from the glass for antimicrobial activity.
![Copper-glass and copper-glass ceramic compositions](/ext/resources/PCI/2019/October/corning/pci1019-Corning-T1-900.jpg)
![Structures of two model glass compositions by molecular dynamics simulations.](/ext/resources/PCI/2019/October/corning/pci1019-Corning-F1-900.jpg)
To overcome the antimicrobial inefficacy of Cu1+-containing glasses, we considered a new approach. The concept was to design a glass that phase separates into a highly durable matrix phase and a lower durability second phase that contains the monovalent copper. We reduced the Al2O3 content in the glass and replaced it with K2O, B2O3 and P2O5. Al2O3 suppresses phase separation in most glass systems, while additions of alkali oxide, B2O3 and P2O5 have the opposite effect.27 The results of several iterations (Samples B-F, Table 1) are shown in Table 1. The level of Cu+/total copper remains approximately the same (0.8-0.9) across the samples; we believe that the high melting temperature and silica-rich environment common to all the samples drives that ratio. Low levels of potassium inclusion (Samples B) were insufficient to significantly increase the antimicrobial potency; a marginal increase in potency was observed when approximately 10 mol% of Al2O3 was replaced by K2O (Sample C). The formation of cuprite crystals was observed by powder X-ray diffraction (XRD) at this level of substitution. Higher Al2O3 content stabilizes monovalent cations such as Cu1+ in the glassy phase in a charge compensating role, which presumably necessitates lowering Al2O3 levels significantly for cuprite crystal formation.27 Further substitution of Al2O3 by B2O3 (Sample D) was made to induce phase separation, but this effect was not observed until P2O5 was also introduced (Sample E). This biphasic glass-containing cuprite showed a major improvement in antimicrobial potency relative to the previous samples. An exemplary composition based on sample E that also included a higher level of copper (Sample F) was shown to have >99.999% efficacy under EPA’s test conditions. This material had a distinct orange color. XRD confirmed that the crystalline phase was cuprite (Cu2O) for sample E (Figure 2a inset). Since this composite material contains both amorphous and crystalline regions, it is generally referred to as a glass ceramic. Figure 2 shows scanning electron microscopic (SEM) images of the material before and after exposure to water, respectively. The lower durability glassy phase regions containing the bright crystalline facets of cuprite crystals (~300 nm; Figure 2a) are replaced to a large extent by cavities (Figure 2b), indicating the release of some of the cuprite crystals from the material. Dissolution of the lower durability phase leads to tunneling into the subsurface with separated discontinuous phases becoming connected and providing additional access to cuprite crystals.
![Scanning electron microscope (SEM) images of copper-glass ceramic cross-section before and after exposure to water](/ext/resources/PCI/2019/October/corning/pci1019-Corning-F2-900.jpg)
Figure 3 is a scanning transmission electron microscopic (STEM) image of the material: the darkest region is the continuous glassy phase, the next lighter regions are the discontinuous glassy regions, and the brightest regions are the faceted cuprite crystals. Composition mapping by electron-dispersive spectroscopy (EDS) shows that the continuous glassy matrix phase is composed primarily of silica while the discontinuous phase containing the cuprite crystals is enriched in phosphorus, boron, and potassium. The dissolution of the discontinuous phase was further proven by analysis of the leached ions measured by ICP-MS. High concentrations of potassium, phosphorus and boron were observed; conversely, Al ions, presumably present in the silica-rich continuous phase, were present at very low concentrations (See Appendix: Supplementary Table 1).
![Energy-dispersive X-ray spectroscopy (EDS) using a scanning transmission electron microscope was used for elemental mapping](/ext/resources/PCI/2019/October/corning/pci1019-Corning-F3-900.jpg)
![Composition of leachate from copper-glass ceramic particles](/ext/resources/PCI/2019/October/corning/pci1019-Corning-TS1-900.jpg)
We hypothesize that the discontinuous phase undergoes facile ion exchange between K+ and H3O+ ions followed by the impregnated water molecules participating in hydrolysis reactions that break oxygen-phosphorus bonds. The hydrolysis reaction has been shown to preferentially take place at Q3 groups, i.e., phosphorous atoms linked into the network by three bridging oxygen atoms.28 The breaking of the chains at Q3 locations depolymerizes the phosphorous glass network to release the cuprite crystals. The continuous silica-rich network tempers access to the dispersed phosphorus-rich phase deeper in the particles, enabling the overall controlled release of copper ions from the material. We cannot rule out some limited leaching of copper ions from cuprite crystals in the durable silica-rich phase.
Antimicrobial Efficacy of Copper-Glass Ceramic Particles
Copper-glass ceramic particles were air jet-milled with no size classification for reasons of scalability and economics. This gave a particle size d50 ranging from 2.5 to 5.0 µm. Milled particles were mixed in commercially available decorative paint sheens (see “Methods” section) at concentrations ranging from ~1 to 40 g L-1. We observed no changes to the physical properties of the paint beyond a slight pink coloration that varied with concentration of copper-glass ceramic added. The bactericidal efficacy was found to depend on the paint formulation, the paint sheen, and the concentration of the copper-glass ceramic. In this article, we focus on data at ~26 g L-1 of the copper-glass ceramic in an eggshell paint formulation as a typical use case for concentration and paint sheen (see “Methods” section). Plastic coupons coated with paint containing copper-glass ceramic particles were tested11 against four bacteria - the Gram-positive Staphylococcus aureus and the Gram-negative bacteria, Pseudomonas aeruginosa, Klebsiella aerogenes and Escherichia coli (see “Methods” section). These bacteria are some of the leading causes of life-threatening hospital-acquired infections and can survive antibiotic intervention to proliferate resistant strains.29 Greater than or equal to 99.9% reduction in colony counts of all four bacteria was observed within 2 hrs (Figure 4, inset). S. aureus reduction kinetics show a steady decrease in colony counts over the course of 150 min, with EPA-prescribed 3-log kill achieved in ~1 hr (Figure 4); these results prove that the copper-glass ceramic has potent antibacterial properties.
![Bacterial reduction kinetics on paint coupons containing copper glass ceramic particles](/ext/resources/PCI/2019/October/corning/pci1019-Corning-F4-900.jpg)
To test the effectivity of the copper-glass ceramic against viruses, we tested the efficacy of coated coupons against murine norovirus (MNV-1), a test surrogate for human norovirus. Human norovirus is a non-enveloped virus, notorious for causing outbreaks of acute gastrointestinal illness aboard cruise ships. It is highly contagious and transmitted via contaminated surfaces, hand-to-hand contact, and ingesting contaminated food and water. We adapted an antiviral test protocol developed by Haldar et al.30 that is consistent with the principles of the EPA protocol for bactericidal efficacy (see “Methods” section). Complete inactivation of murine norovirus was observed on coated coupon surfaces (See Appendix: Supplementary Table 2).
![Reduction in murine norovirus following 2-hr exposure to paint containing copper-glass ceramic particles](/ext/resources/PCI/2019/October/corning/pci1019-Corning-TS2-900.jpg)
Copper-glass ceramic was also evaluated as an in-can preservative of paint emulsions. Mainstream organic preservatives such as methylisothiazolinone are added to water-based emulsions to prevent spoilage by bacteria and fungi. Health-related risks associated with isothiazolinones31 have prompted tough regulatory measures and elicited an urgent search for safer alternatives. Using a standard test method for measuring the resistance of emulsion paints in a container to attack by microorganisms (ASTM D2574)32, we observed that the copper-glass ceramic was effective at preventing bacterial contamination by P. aeruginosa and Enterobacter aerogenes (K. aerogenes) (See Appendix: Supplementary Table 3) at only about 1/25th the concentration required for passing the EPA test against human pathogens.
![In-can preservative performance of copper-glass ceramic particles](/ext/resources/PCI/2019/October/corning/pci1019-Corning-TS3-900.jpg)
Toxicology and Potential Environmental Impact
Animal toxicity studies of finely milled copper-glass ceramic particles revealed no significant concerns (Table 2; “Methods”; Appendix: Supplementary Data 1; detailed reports available on request). We also evaluated the levels of leached copper from coatings to determine its potential environmental impact. The levels of Cu ions leached from paint films containing the copper-glass ceramic were studied over five days, with higher than typical concentrations of the copper-glass ceramic (33 g L-1). The level of leached copper was ~550 ppb in the first 24 hrs, after which it dropped to a steady level of 20-35 ppb day-1 (See Appendix: Supplementary Table 4). These levels are well below the 1,300 ppb Cu day-1 limit set by the EPA for drinking water.
![Toxicological profile of copper-glass ceramic powder in animal studies conducted in accordance with US EPA guidelines](/ext/resources/PCI/2019/October/corning/pci1019-Corning-T2-900.jpg)
![Leached copper from coatings containing copper-glass ceramic particles](/ext/resources/PCI/2019/October/corning/pci1019-Corning-TS4-900.jpg)
Stability and Longevity of Antimicrobial Potency
We explored the storage stability of the copper-glass ceramic and the ability of coatings containing the material to retain antimicrobial potency through simulated long-term use - considerations that are key to the practical deployment of the material. Accelerated aging studies of the copper-glass ceramic powder to simulate a one-year period of storage showed no deterioration or corrosion (See Appendix: Supplementary Data 2). We evaluated the long-term potency of the liquid paint and the painted coupons containing the copper-glass ceramic; no decrease in potency was observed over a six-month study period, suggesting conservation of antimicrobial potency as an additive in an aqueous emulsion and in the dry-film state. To simulate wear-and-tear, and ability to withstand cleaning as prescribed by CDC guidelines for infection control, we subjected painted coupons with and without the copper-glass ceramic to rigorous washing and abrasion simulating up to four years of wear (see “Methods” section). Worn test coupons containing the copper-glass ceramic exhibited a >99.9% reduction in S. aureus colony counts (Figure 5) relative to worn control coupons even after 48 cleaning cycles (192 passes of a wet scouring pad on the coating surface). We also evaluated the effect of repeated contamination/soiling of coupons with S. aureus. Control coupons showed an increase in bacterial bioburden following three repeat inoculations (Table 3). By contrast, test coupons demonstrated the ability to continuously reduce bacterial colony counts down to limit of detection. We made copper core-silica shell particles (as described in the literature33) as an alternative to a glass-ceramic host for Cu1+ ions. These nanoparticles were water dispersible and had an antimicrobial potency similar to the copper-glass ceramic but had to be stored under alcohol to preserve their orange-red color and antimicrobial properties.
![Continuous cleaning ability of copper-glass ceramic](/ext/resources/PCI/2019/October/corning/pci1019-Corning-T3-900.jpg)
![Efficacy of copper-glass ceramic particles after simulated wear](/ext/resources/PCI/2019/October/corning/pci1019-Corning-F5-900.jpg)
The high antimicrobial efficacy (≥99.9% microbial reduction in 2 hrs) of the copper-glass ceramic is achieved at very low surface concentrations of copper (~5%). An understanding of glass structure-property relationships and the steric constraints with H3O+ ion exchange led us to the copper-glass ceramic material with a fundamentally different mechanism for the release of copper ions. The work demonstrates and broadens the scope of rationally designed glasses as hosts for functional nanomaterials. The practical advantages of glass manufacturability contrast with the difficulties of scaling the bottoms up chemical syntheses of air-sensitive nanomaterials or host-guest complexes. Furthermore, the glass itself offers material properties and the potential for chemical functionalization that enable a broad range of applications. In an era of ever-increasing concern with infectious diseases and frustration with the performance limitations and safety of organic biocides, the copper-glass ceramic described in this paper is particularly significant.
Methods
Preparation of Glass and Glass Ceramic
The glass and glass ceramic materials were prepared from boalin sand (Coarse Berkely Fine Special; US Silica), calcined alumina (A2, Unground Classified; Almatis), cupric oxide (325 mesh; Ceramic Color and Chemical), aluminum metaphosphate (Powder, Technical Grade; Chemical Distributors Inc.), technical-grade boric acid (Optibor TG; Chemical Distributors Inc.), and potassium carbonate (food additive grade; Amrex Chemical) raw materials. The raw materials were mixed in a Turbula mixer, then melted for 6 hrs at 1,600 °C in covered fused quartz crucibles. The molten glasses were then poured from the crucibles onto a clean stainless-steel table and transferred to annealing furnaces set to the previously determined anneal point for each glass. Glasses were heat treated at the anneal point temperature for 6 hrs and then cooled to room temperature at a cooling rate of 100° Ch-1.
Milling of Copper-Glass Ceramic
The glass samples were hammered into small chunks, magnetically cleaned and fed into a ceramic disc pulverizer to produce a jet milling feedstock size to pass through a 20-mesh sieve (850-µm openings). The glass grains were processed on a ceramic-lined laboratory size 2” Sturtevant Micronizer® air jet mill and reduced to a fine micron size powder with a narrow particle distribution. The jet milled powder was then screened at 325 mesh (45-µm openings) to remove any foreign debris and unground particles.
Coupon Preparation
Finely milled copper-glass ceramic particles were weighed and mixed with commercial paints (PPG Olympic One, Eggshell Interior Paint, PPG Diamond Interior Paint + Primer) using an overhead stirrer (Fisher Scientific) for 3-5 min to prepare test paint containing 26 g L-1 of copper-glass ceramic particles. The emulsion was stirred again for 3-5 min prior to coupon preparation. 1” × 1” test coupons (BYK-Gardner 5015 byko-chart black scrub test panels P121- 10N) were painted with primer (Zinsser® Bulls Eye 1-2-3 Water-Base Primer; 3 mils) and allowed to dry overnight at ambient temperature and humidity. Two coats of paint (3 mils each) containing copper-glass ceramic were applied sequentially, and each layer was allowed to dry for ≥24 hrs. Untreated control coupons were similarly prepared using paints without copper-glass ceramic particles. On the day of testing, coupons were exposed to ultraviolet light (Thermo Scientific 13 - Series Class II, Type A2 Biological Safety Cabinet; wavelength 254 nm) on both sides for approximately 15 min. Stainless-steel coupons, used as reference surfaces, were cleaned and sterilized by immersion in a 75% ethanol solution followed by rinsing with deionized (DI) water.
Microorganisms and Cell Lines
Bacterial strains used were S. aureus (ATCC 6538), K. aerogenes (ATCC 13048), P. aeruginosa (ATCC 15442) and E. coli (ATCC 35150). Vials containing each bacterial stock culture were stored at -80 °C until use. Virucidal efficacy tests were conducted at Accuratus Lab Services, MN. Accuratus used murine norovirus, strain S99, obtained from Friedrich-Loeffler-Institut, Greifswald, Germany, and conducted infectivity assays using RAW 264.7 cells, a continuous mouse macrophage cell line.
Bactericidal Efficacy Tests
Bactericidal efficacy tests including study controls were performed as described in the EPA test for efficacy of copper alloy surfaces as a sanitizer.11 Each coupon was tested in triplicate.
Twenty-µL aliquots of thawed bacterial cultures were added to 10 mL Tryptic Soy Broth (Teknova). These bacterial suspensions were serially incubated 3× at 36 ° C (K. aerogenes at 30 °C) for 18-24 hrs in an orbital shaker (New Brunswick Scientific) and then 1× in polypropylene snap tubes (Fisher Healthcare) for 48 hrs. Cultures were subsequently mixed on a vortex mixer (VWR Scientific) and allowed to settle. The upper two thirds of suspension from each tube was aspirated and OD600 measured (Smart Spec Spectrophotometer 3000, Bio-Rad) for bacterial density estimation. The culture was diluted with phosphate buffer saline (Gibco Life Technologies) to achieve a bacterial inoculum concentration near a target value of 1.0 × 107 colony-forming units (CFU) mL-1. Organic soil load containing 0.25 mL of 5% fetal bovine serum (Gibco Life Technologies) and 0.05 mL Triton X-100 (Amresco Pro Pure) was added to 4.70 mL bacterial suspension to aid in spreading the inoculum.
Each coupon was inoculated with 20 µL of the bacterial test culture. The inoculum volume was spread evenly using bent sterile pipette tips (Mettler-Toledo) to ensure full and even coverage, spreading as close to the edge of the coupon as possible. Coupons were then incubated in a controlled environment set at 42% relative humidity (RH) and 23 °C for a period of 120 min.
Following the 120-min exposure period, coupons were neutralized in Letheen broth (Gen Lab). Ten-fold serial dilutions of the neutralized solutions were plated using standard spread plate technique on Tryptic Soy Agar plates and incubated for 48 hrs at 36 °C (30 °C for K. aerogenes) to yield countable numbers of survivors (approximately 20-200 colonies per plate).
Simulated Wear of Copper-Glass Ceramic Particles in Coatings
Paint panels containing copper-glass ceramic (26 g L-1) were subjected to wear procedure (washing and abrasion), simulating a worst-case scenario of 4× cleaning every month for up to 4 years. Simulated wear was performed using an Elcometer 5750 Taber® Linear Abraser. Cleaning solution was prepared with a general multipurpose detergent (Best Yet Citrus Cleaner™) at prescribed dilution in DI water (1:64). A scouring pad (3 M ScotchBrite® Light Duty Cleaning Pad (1” × 1”)) was saturated with cleaning solution - 2 sprays applied from a distance of 2-3”, using a trigger spray bottle (Great Value™). The pad was attached to an aluminum block attachment (ScotchBrite Kit, Taber Industries) using double-sided adhesive tape. No additional accessory weights were added to the spline-shaft of the linear abraser (base load of 350 g) to keep the pressure similar to that applied in standard paint washability tests such as ASTM D3450. Speed was set to 30 cycles min-1, cycle counter at 2, and stroke length was set to 4”. A 1” × 4” painted panel was secured below the ScotchBrite pad, and 2 cycles were run, representing 1 complete wear cycle (4 passes of the wet scouring pad against the surface). The panel was dried for ≥10 min before the next wear cycle was performed. This process was repeated for 24 cycles (96 passes of the wet scouring pad) to simulate wear and washing for up to 2 years and 48 cycles (192 passes of the wet scouring pad) to simulate cleaning for up to 4 years. After completion of wear cycles, panels were cut into 1” × 1” coupons and tested for bactericidal efficacy against S. aureus (ATCC 6538). Bacterial colony counts on worn test coupons were subtracted from colony counts on similarly worn control coupons to measure reductions.
Continuous Cleaning Ability of Copper-Glass Ceramic
Three sets of test coupons (containing copper-glass ceramic) and 3 sets of control coupons were used. All coupons were inoculated with 20 µL of bacterial inoculum (t = 0). Following 2 hrs of incubation at 23 °C and 42% RH, one test and one control coupon were neutralized and removed for quantitative recovery. The remaining coupons were re-inoculated a second time (t = 2 hrs) with 20 µL of culture using a calibrated pipette. Another test and control coupon were removed for quantitative recovery and the remaining set re-inoculated a third time (t = 4 hrs). This set of coupons was neutralized and enumerated at t = 6 hrs. At each recovery time (2, 4, and 6 hrs), control and test coupons were neutralized and enumerated.
Virucidal Efficacy Tests
Protocol for antiviral efficacy was adapted from Haldar et al.30 and conducted at Accuratus Lab Services, MN. Coupons were inoculated with 20 µL murine norovirus using the same procedure used for bacteria and incubated in a controlled chamber set to RH of 50% and temperature of 20 °C. After 120 min, 1.0 mL aliquots of 2× Minimum Essential Medium (Gibco Life Technologies) were pipetted individually onto each test and control coupon. The surface of each coupon was scraped with sterile plastic cell scrapers (Bioscience) and the test medium collected and passed through Sephadex columns (GE Healthcare). The filtrates were then serially diluted ten-fold and assayed for infectivity in RAW 264.7 cells.
Calculations of Log and Percentage of Reductions
Log and percentage of reductions for bactericidal efficacy tests measure differences in CFUs between control and test coupons.11 For virucidal efficacy tests, PFU50 signifies the concentration at which 50% of the RAW 264.7 cells are infected when the well plate upon which cells have been cultured is inoculated with a diluted solution of viral fluid from either test or control coupons. Log and percentage of reductions measure differences in PFU50 between control and test coupons.
Acute Toxicity Testing in Animals
Acute toxicity testing was conducted by Stillmeadow Inc, TX. Methods and results are summarized in Supplementary Data 1 (See Appendix).
Molecular Dynamics Simulations
Molecular dynamics simulations were carried out on a cubic sample made up of approximately 2,000 atoms with random coordinates equilibrated at 4,000 K for 1 ns. The high temperature melt was quenched to 300 K continuously over a period of 8 ns in an NPT (constant number of atoms, constant pressure, and constant temperature) assemble under ambient pressure.34 Finally, the glass was relaxed at 300 K under atmospheric pressure for 1 ns. Periodic boundary conditions were applied in all directions. The widely used force field for oxides developed by Pedone et al.35 was used. The visualization of the local atomic structure was facilitated by Ovito36.
References
1 Rappuoli, R.; Bloom, D.E.; Black, S. Deploy Vaccines to Fight Superbugs. Nature 552, 165-167 (2017).
2 Davies, J.; Davies, D. Origins and Evolution of Antibiotic Resistance. Microbiol. Mol. Biol. Rev. 74, 417-433 (2010).
3 Salgado, C.D. et al. Copper Surfaces Reduce the Rate of Healthcare-Acquired Infections in the Intensive Care Unit. Infect. Control Hosp. Epidemiol. 34, 479-486 (2013).
4 Warnes, S.L.; Highmore, C.J.; Keevil, C.W. Horizontal Transfer of Antibiotic Resistance Genes on Abiotic Touch Surfaces: Implications for Public Health. mBio 3, e00489-12 (2012).
5 Vincent, M.; Duval, R.E.; Hartemann, P.; Engels-Deutsch, M. Contact Killing and Antimicrobial Properties of Copper. J. Appl. Microbiol. 124, 1032-1046 (2018).
6 Grass, G.; Rensing, C.; Solioz, M. Metallic Copper as an Antimicrobial Surface. Appl. Environ. Microbiol. 77, 1541-1547 (2011).
7 Thurman, R.B.; Gerba, C.P. The Molecular Mechanisms of Copper and Silver Ion Disinfection of Bacteria and Viruses. Crit. Rev. Environ. Control 18, 295-315 (1989).
8 Mathews, S.; Kumar, R.; Solioz, M. Copper Reduction and Contact Killing of Bacteria by Iron Surfaces. Appl. Environ. Microbiol. 81, 6399-6403 (2015).
9 Sunada, K.; Minoshima, M.; Hashimoto, K. Highly Efficient Antiviral and Antibacterial Activities of Solid-State Cuprous Compounds. J. Hazard Mater. 235-236, 265-270 (2012).
10 Hans, M. et al. Role of Copper Oxides in Contact Killing of Bacteria. Langmuir 29, 16160-16166 (2013).
11 United States Environmental Protection Agency. Test Method for Efficacy of Copper Alloy Surfaces as a Sanitizer (United States Environmental Protection Agency, Washington DC, 2008).
12 Michels, H.T.; Anderson, D.G. Metal Ions in Biology and Medicine, Vol. 10 (eds Collery, P. et al.) (John Libbey Eurotext, Montrouge, 2008).
13 Rosenberg, M. et al. Rapid in situ Assessment of Cu-ion Mediated Effects and Antibacterial Efficacy of Copper Surfaces. Sci. Rep. 8, https://doi.org/10.1038/ s41598-018-26391-8 (2018).
14 Michels, H.T.; Noyce, J.O.; Keevil, C. W. Effects of Temperature and Humidity on the Efficacy of Methicillin-Resistant Staphylococcus aureus Challenged Antimicrobial Materials Containing Silver and Copper. Lett. Appl. Microbiol. 49, 191-195 (2009).
15 Morse, D.L.; Evenson, J.W. Welcome to the Glass Age. Int. J. Appl. Glass Sci. 7, 409-412 (2016).
16 Norton, F.J. Permeation of Gaseous Oxygen Through Vitreous Silica. Nature 191, 701 (1961).
17 Matusita, K.; Mackenzie, J. D. Low Expansion Copper Aluminosilicate Glasses. J. Noncryst. Solids 30, 285-292 (1979).
18 Matusita, K.; Sakka, S.; Shouji, T. Thermal Expansion of Substituted Copper Aluminosilicate Glasses. J. Am. Ceram. Soc. 66, 33-35 (1983).
19 Doremus, R.H. Interdiffusion of Hydrogen and Alkali Ions in a Glass Surface. J. Noncryst. Solids 19, 137-144 (1975).
20 Lanford, W.A. et al. Hydration of Soda-Lime Glass. J. Noncryst. Solids 33, 249-266 (1979).
21 Quaranta, A. et al. Formation of Copper Nanocrystals in Alkali-Lime Silica Glass by Means of Different Reducing Agents. J. Noncryst. Solids 345-346, 671-675 (2004).
22 Swarts, E. L. Introduction to Glass Science (Plenum Press, New York, 1972).
23 Shannon, R.D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Crystallogr. A 32, 751-767 (1976).
24 Bradley, L.C. et al. Hydronium Ions in Soda-Lime Silicate Glass Surfaces. J. Am. Ceram. Soc. 96, 458-463 (2013).
25 Doremus, R.H. Exchange and Diffusion of Ions in Glass. J. Phys. Chem. 68, 2212-2218 (1964).
26 Gehrke, E.; Ullner, C.; Hähnert, M. Fatigue Limit and Crack Arrest in Alkali-Containing Silicate Glasses. J. Mater. Sci. 26, 5445-5455 (1991).
27 Tomozawa, M. Treatise on Materials Science and Technology, Vol. 17 (Academic Press, New York, London, 1979).
28 Ma, L.; Brow, R.K.; Schlesinger, M. E. Dissolution Behavior of Na2O-FeO-Fe2O3-P2O5 Glasses. J. Noncryst. Solids 463, 90-101 (2017).
29 Pendleton, J.N.; Gorman, S.P.; Gilmore, B.F. Clinical Relevance of the ESKAPE Pathogens. Expert Rev. Antiinfect. Ther. 11, 297-308 (2013).
30 Haldar, J.; Weight, A.K.; Klibanov, A.M. Preparation, Application and Testing of Permanent Antibacterial and Antiviral Coatings. Nat. Protoc. 2, 2412-2417 (2007).
31 Amsler, E. et al. Airborne Allergic Contact Dermatitis Caused by Isothiazolinones in Water-Based Paints: a Retrospective Study of 44 Cases. Contact Dermat. 77, 163-170 (2017).
32 ASTM D2574-16. Standard Test Method for Resistance of Emulsion Paints in the Container to Attack by Microorganisms (ASTM International, West Conshohocken, PA, 2016).
33 Su, X. et al. A Facile Synthesis of Cu2O/SiO and Cu/SiO2 Core-Shell Octahedral Nanocomposites. Nanotechnology 19, 365610 (2008).
34 Nosé, S. A Unified Formulation of the Constant Temperature Molecular Dynamics Methods. J. Chem. Phys. 81, 511-519 (1984).
35 Pedone, A.; Malavasi, G.; Menziani, M.C.; Cormack, A.N.; Segre, U. A New Self-Consistent Empirical Interatomic Potential Model for Oxides, Silicates, and Silicas-Based Glasses. J. Phys. Chem. B 110, 11780-11795 (2006).
36 Stukowski, A. Visualization and Analysis of Atomistic Simulation Data with OVITO-the Open Visualization Tool. Modelling Simul. Mater. Sci. Eng. 18, 015012 (2010).
Acknowledgements
We thank Dr. Victor Jin for concentration studies of the copper-glass ceramic in paint; Kaitlyn Matias for antimicrobial testing on copper-glass coupons; Erika L. Stapleton for XRD analysis; Dr. Bavani Balakrisnan and Daniel A. Sternquist for ICP and redox chemistry analysis; Dr. Ying Zhang, Guohua Chen, and Dr. John Wang for work on silica shell nanoparticles; Shawn T. Barkley for powder preparation and characterization; and Dr. Randall E. Youngman for NMR analysis. We also thank Professor Stephen J. Ben- kovic, Dr. Gary S. Calabrese, Martin J. Curran, Professor Chad A. Mirkin, Dr. David L. Morse, Professor Thomas E. Shenk, and Wendell P. Weeks for critical feedback.
Author Contributions
T.M.G. created the copper-glass and copper-glass ceramic compositions. T.M.G., J. La. and A.G. provided critical input and wrote the manuscript. J. Lu. conducted molecular dynamics simulations. AM efficacy was measured by F.V. and J.L.K. J.W. performed STEM analysis. D.E.B. performed SEM analysis. P.F.N. prepared test coupons. M.J.S. conducted melts of copper-glass ceramic.
Author Note
This article original by Timothy M. Gross, Joydeep Lahiri, Avantika Golas, Jian Luo, Florence Verrier, Jackie L. Kurzejewski, David E. Baker, Jie Wang, Paul F. Novak, and Michael J. Snyder, Corning Incorporated, Corning, NY, appeared in the April 30, 2019 issue of Nature Communications magazine. Supplemental information and data was condensed from the original version of the publication. To view a copy of the Creative Commons license, please visit http://creativecommons.org/licenses/by/4.0/. © The Author(s) 2019.
Appendix: Supplementary Information
SUPPLEMENTARY DATA 1 » Summary of acute toxicology studies. All acute toxicity studies were performed by Stillmeadow Incorporated, TX, per EPA test guidelines in compliance with Good Laboratory Practices.
Acute oral toxicity in rats (Test Guideline OCSPP 870.1100)
Copper-glass ceramic particles were evaluated for acute oral toxicity potential in female albino rats when administered as a gavage dose at 5,000 mg/kg. Since the test substance failed the limit test, a main test was conducted following up-and-down procedure (UDP) at 175, 550, 1,750 and 5,000 mg/kg. The study was terminated following stopping rules of this procedure. Mortality occurred only at the 5,000 mg/kg level; one animal exhibited severe symptoms and weight loss by Day 14 study termination. Clinical signs included activity decrease, blue feces/urine, decreased defecation, distended abdomen, cyanosis, hunched posture, hypothermia, emaciation, ocular discharge and piloerection. Survivors had signs on days 0, and 6-10. Animals surviving to termination exhibited weekly weight gain during the study. Abnormal necropsy findings occurred only in the animals dying during the test, and pertained to facial/anogenital areas, lungs, liver, spleen, and contents of the gastrointestinal tract. The test substance acute oral LD50, indicated by the data, was estimated to be 5,000 mg/kg.
Acute dermal toxicity in rats (Test guideline OCSPP 870.1200)
Copper-glass ceramic particles were evaluated for dermal toxicity potential and relative skin irritancy when a single dose at 5,050 mg/kg, moistened with deionized (DI) water, was applied to the intact skin of albino rats. No mortality occurred during the study. There were no clinical signs of toxicity or signs of dermal irritation at any time throughout the study. Animals exhibited weekly weight gain during the study. Gross necropsy conducted at study termination revealed no observable abnormalities. The test substance LD50 was determined to be greater than 5,050 mg/kg.
Acute eye irritation in rabbits (Test guideline OCSPP 870.2400)
Acute eye irritation study was conducted on three albino rabbits (1 to start, 2 after) using test substance (copper-glass ceramic particles). 100 mg of test substance was placed in the conjunctival sac of the right eye of the animal selected for testing. Any treated eyes were washed with room temperature deionized (DI) water for one minute after recording the 2-hr observation. The number of animals testing “positive” for each parameter vs. number of animals observed is presented as follows:
Time After Treatment |
|||||
|
Hours |
Day |
|||
|
1 |
24 |
48 |
72 |
4 |
Cornea opacity |
1/3 |
0/3 |
0/3 |
0/3 |
0/1 |
Iritis |
0/3 |
0/3 |
0/3 |
0/3 |
0/1 |
Conjunctivae redness Chemosis |
2/3 |
2/3 |
2/3 |
0/3 |
0/1 |
1/3 |
0/3 |
0/3 |
0/3 |
0/1 |
There were no positive effects exhibited in any eye at 72 hrs after treatment. Therefore, the test substance is assigned Toxicity Category III. The test substance is mildly irritating.
Acute dermal irritation in rabbits (Test guideline OCSPP 870.2500)
A primary dermal irritation study was conducted on three albino rabbits. Each test site (one intact site per animal) was treated with 500 mg of copper-glass ceramic particles moistened with DI water and covered with semi-permeable dressing. Particles were kept in contact with animal skin for 4 hrs. Observations for dermal irritation and defects were made at 1, 24, 48 and 72 hrs after unwrapping the dressing. Irritation scores derived from respective erythema and edema scores through 72-hr observations are tabulated in the following table:
|
Erythema |
Edema |
|
||||||
Hours after Unwrapping |
Hours after Unwrapping |
|
|||||||
|
1 |
24 |
48 |
72 |
1 |
24 |
48 |
72 |
Irritation Scores |
Rabbit 1 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Rabbit 2 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Rabbit 3 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
Primary Irritation Index (PII) = 0 |
Copper-glass ceramic particles are rated non-irritating based on a PII = 0. Based on scores at 72-hrs, copper-glass ceramic particles are assigned Toxicity Category IV.
Skin sensitization in guinea pigs (Test guideline OCSPP 870.2600)
Skin sensitization study was conducted on 15 male and 15 female short-haired albino guinea pigs. Animals were assigned to one of two groups, designed naive control (5/gender) and test (10/gender). Naive control animals remained untreated during the induction phase of the study. Animals in the test group were treated with 400 mg of test substance moistened with DI water (selected from range-finding). Test animals were treated once weekly for three weeks, for a total of three inductions. After a two-week rest period, all animals (both groups) were challenged at a virgin test site with an application of 400 mg of copper-glass ceramic moistened with DI water. Copper-glass ceramic particles produced no reaction in either test animals or naïve control animals after the challenge treatment and is not a sensitizer in guinea pigs.
Acute inhalation toxicity (Test guideline OCSPP 870.1300)
Five male and five female albino rates were exposed for 4 hrs to an aerosol generated from copper-glass ceramic particles at 2.29 mg/L. No mortality occurred during the study. Clinical signs include decrease in activity, piloerection and test substance on muzzle, no longer evident by Day 1. Animals exhibited weekly weight gain with the exception of one test animal that lost weight between Days 0 and 7. Gross necropsy revealed no observable abnormalities except discolored lungs. Acute inhalation LC50 is greater than 2.29 mg/L.
SUPPLEMENTARY DATA 2 » Accelerated storage stability of copper-glass ceramic particles (OPPTS 830.6317)
Storage stability of copper-glass ceramic particles was studied at Still Meadows Lab, TX. On day 0, samples of copper-glass ceramic were analyzed by a validated titration method and were found to contain an average of 32.85% copper oxide. Titration was conducted again on samples incubated at 54°C for 14 days, which simulates storage over a 1-year period. Average copper oxide concentration was found to be 32.54% demonstrating analytical stability of copper-glass ceramic.
