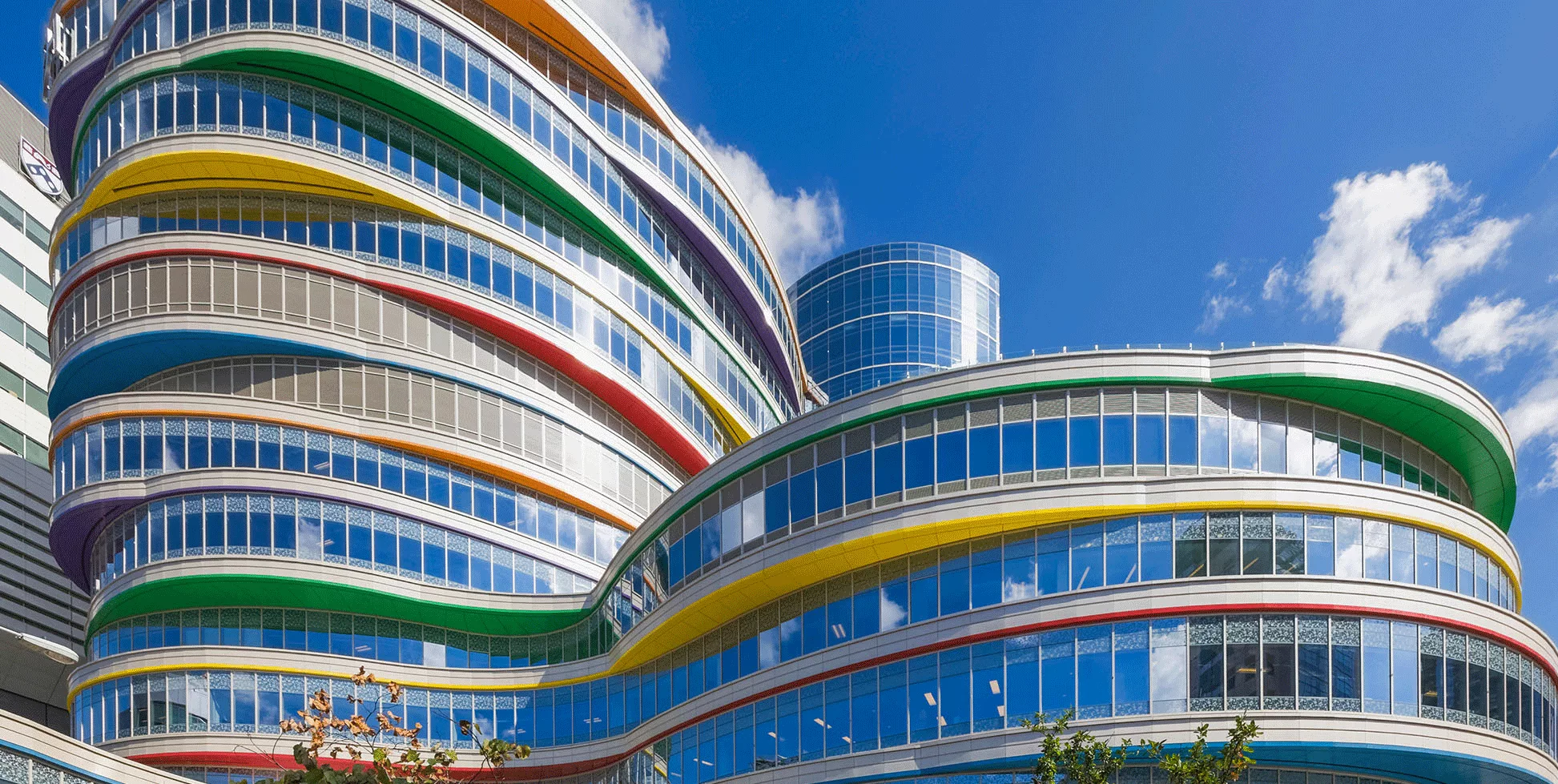

In July, the Buerger Center for Advanced Pediatric Care opened as the newest addition to The Children’s Hospital of Philadelphia (CHOP) campus, which serves more than 200,000 patients each year. Designed by Pelli Clarke Pelli Architects and FKP Architects, the 12-story, 700,000-square-foot ambulatory care center is the focus of the new South Campus. Its curving curtainwall systems feature Valspar’s high-performance Fluropon® coating systems in nine bold colors selected by the architects to give the exterior a vibrant, welcoming appearance.
Working with the architect and general contractor Turner Construction Co. on the $425 million project, Baker Metal Products Inc. designed and manufactured the curtainwall and Enclos Corp. managed the installation. Five types of unitized curtainwall systems were customized for CHOP’s Buerger Center. It included 4,219 shop-assembled and shop-glazed units, encompassing 151,000 square feet and incorporating segmented radius layouts. Texas Finishing Co. painted all of the aluminum framing in Valspar’s 70 percent PVDF resin-based Fluropon coatings to meet the strict requirements of the project and provide long-lasting performance and color retention.
“Stacked to create an undulating form, the building’s floors vary in area and shape according to their function,” describes Pelli Clarke Pelli Architects. “Toward the clinical spaces, the main wing’s eight floors are aligned with a rectilinear spine. Along the waiting areas, floors are offset to create light-filled public spaces. The undersides of the floors are exposed, each revealing a single bright color.”
“Using brightly colored Fluropon coatings, a horizontal accent band smoothly blends the complex connection between curtainwall and soffits,” explains Jeff Alexander, Vice President of Sales for Valspar’s global coil and extrusion businesses. “The colors change at each floor, alternating between orange, blue, red, yellow, green and purple. The primary colors match the child-friendly atmosphere further expressed with the handprints in the glass’ frit pattern. It all adds up to create a cheerful welcome for the patients, staff and visitors.”
Texas Finishing applied Valspar’s coatings to the building components one floor at a time, and would encounter up to six color changes in a single day to fulfill the requirements of final assembly in fabrication. The remainder of the metal framing on CHOP’s Buerger Center is finished in Fluropon Silver Pearl using a four-coat system on the exterior building components and a three-coat system on the interior building components.
“The colors applied very well without any issues,” says Ken Martin, General Manager of Texas Finishing. “It was an honor for us to be involved in such a unique project consisting of nine different colors, including some vibrant pigments accenting the building, which creates an inviting campus for children and their parents. We are confident that these colors will last for decades to come based on the superior coatings provided by Valspar.”
Durable finishes contribute to the project’s longevity and reduce the need for maintenance throughout its life cycle. Valspar’s Fluropon coatings meet or exceed the American Architectural Manufacturers Association’s stringent standard, AAMA 2605 high-performance exterior specification. Fluropon demonstrates reliable performance including resistance to harmful ultraviolet rays, chemical degradation, abrasions and humidity. These attributes also support green building goals as the project seeks LEED® Silver certification.
